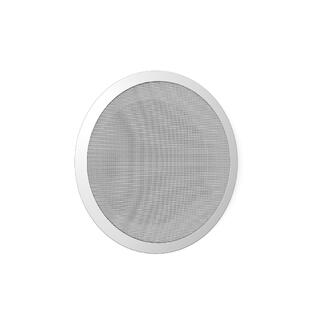

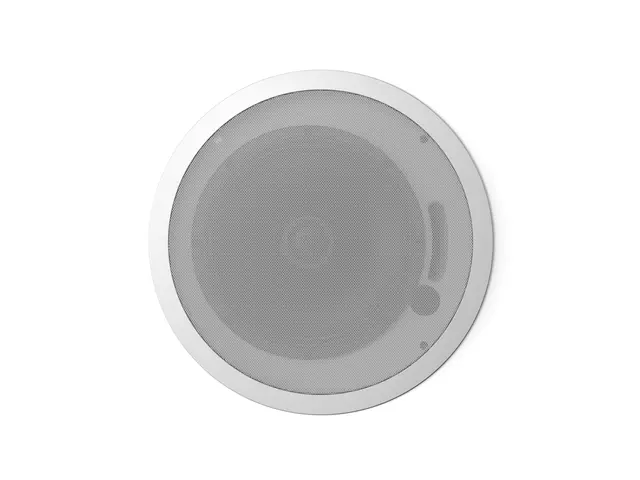

The Tessen TNi-C8 delivers premium audio reinforcement. designed with the installer in mind, The TNi-C8 – 8 inch coaxial ceiling speaker - features a 6 position power tap selector located under the front steel grille, providing swift output adjustment once installed. With connectivity for 70V/100V and 8 ohm low impedance lines, the TNi-C8 delivers a highly flexible solution. The spring connection terminals ensure cables are secure once fitted.
100V Power Options | 40W, 20W, 10W |
70V Power Options | 20W, 10W, 5W |
Frequency Response (-10) | 65Hz > 20kHz |
Frequency Response (-3) | 80Hz - 16KHz |
LF Driver | 8 Inch, Paper Cone |
HF Driver | 1.5 INCH NEODYMIUM |
Low Nominal System Impedance | 8 OHM |
Power | 65W AES, 260W Peak |
Max SPL (1M) (Peak) | 115 dB SPL |
Sensitivity (1W/1M) | 91 dB SPL |
Nominal Coverage | 100° conical |
Input Connector | PUSH SPRING CONNECTORS |
Mounting Points | 4X DOG EAR BRACKETS |
Mounting Depth | 195MM, (7.7") |
Installation Grip Range | 4 - 20MM |
Cutout | 275MM, (10.8") |
Outside Diameter | 300MM, (11.8") |
Unit Weight | 2.6KG, 5.7 LBS |
Main Construction Material | ABS PLASTIC |
Grille | 1.5MM CIRCULAR MESH STEEL |
Finish | WHITE |
|
