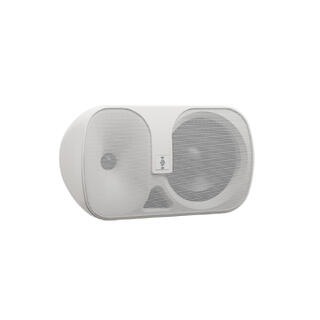

The TNi-W6 delivers professional audio output and versatility within a compact, wall mount speaker enclosure. The TNi-W6 – 6.5 inch passive speaker - features 4 power tappings ranging from 2.5W - 40W and can be connected to 70V/100V or 8 ohm low impedance lines. Equipped with euroblock and m4 screw terminals, The TNi-W6 offers a wide array of connections within a single unit. With solid steel, multi-angle bracket included, The TNi-W6 comes with all essential installation components.
100V Power Options | 40W, 20W, 10W, 5W |
70V Power Options | 20W, 10W, 5W, 2.5W |
Frequency Response (-10) | 65Hz > 20KHz |
Frequency Response (-3) | 80Hz - 18KHz |
LF Driver | 6.5 inch Paper |
HF Driver | 1" DOME TWEETER |
Low Nominal System Impedance | 8 OHM |
Power | 55W AES, 220W Peak |
Max SPL (1M) (Peak) | 113 dB SPL |
Sensitivity (1W/1M) | 90 DB SPL |
Recommended Amplifer | 100-200W @ 8 Ohms |
Horiz. Dispersion Angle 1000Hz | 90° |
Vertical Dispersion Angle 1000Hz | 80° |
Input Connector | EUROBLOCK AND M4 TERMINALS |
Link Connector | EUROBLOCK AND M4 TERMINALS |
Mounting Bracket | ADJUSTABLE STEEL BRACKET INCLUDED |
Unit Dimensions (Hwd) | 330 X 196 X 281MM, 13" X 7.7" X 11.1" |
Unit Weight | 3.45KG, 7.6 LBS |
Main Construction Material | ABS PLASTIC |
Grille | WHITE, CIRCULAR STEEL MESH |
Finish | White |
