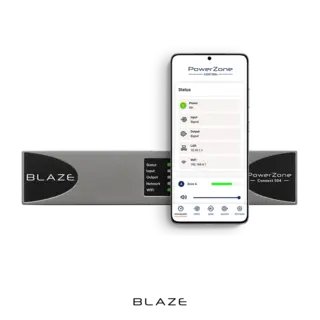

Blaze Audio PowerZone Connect 504D EU
4x125W | 4-8 Ohm | 2x250w | 100V | 16 Ohm | Dante
The PowerZone Connect 504D is a compact DSP amplifier in a half rack, With Dante, 1U format. It’s network-connected, giving wired or wireless access to the PowerZone Control web app’s system setup and audio configuration menu. From here you can manage inputs/outputs, control sound zones and access professional tuning settings – all helping achieve impressive sound in the shortest time possible.
It can drive both conventional low impedance (4O to 16O) loudspeakers and constant voltage (70V/100V) transformer coupled loudspeakers. With four analogue inputs, and one stereo digital input, it has flexible output options – 4 x 125W in Lo-Z mode and 2 x 250W in Hi-Z mode. Automatic power sharing technology enables 250W to be shared proportionately between each pair of Lo-Z outputs.
Full matrix DSP amplifier with configuration and control via the simple WebApp
Flexible power output with 4 x 125W / 2 x 250W and power sharing technology
Route any input to any output channel – create sound Zones in minutes
Ultra-compact form factor means it can be installed in spaces where others cannot
Powered by Pascal UMAC™ Class-D technology
Accessories
Model | PowerZone™ Connect 504/504D |
Total System Power | 500 W |
Output Power @ 4/80 | 4 x 125 W |
Output Power @ 70/100V* | 2x250W |
Powershare (up to) Across all channels** | 2 x 250 W |
Total System Power | 500 W |
Power Consumption | 150W |
Dimensions | 44x220 x319mm (1.7 x 8.7 x 12.6 in) |
Weight | 2.8kg(6.2 lbs) |
Output Circuitry | UMAC™ Class D full bandwidth PWM modulator with ultra-low distortion |
Output Voltage | 45Vrms (S.E) 70/100V (Hi-Z) |
Signal To Noise-Ratio | >106dB (A-weighted, 20Hz-20kHz. 80 load) |
THD+N (typical) | 0.05% (20Hz-20kHz. 80 load, 3dB below rated power) |
Frequency Response | 20Hz-20kHz (+0/-0.25dB (80 load, 3dB below rated power) |
Protection Circuits | Short circuit DC Undervoltage Temperature and Overload protection |
Power Supply | UREC™ universal mains switch mode power supply with Power Factor Correction (PFC) and standby converter |
Operating temperature | 0-40°C |
Operating Voltage/Frequency | Universal Mains, 100V-240V. 50Hz-60Hz |
Standby Consumption | <0.5W |
Options | Audinate Dantes AolP compatibility [PowerZone™ Connect 122D/504D only] |
Accessories | 2x Rack 1x 1/2 rack plate 2x 1/2 rack 2x Rear ears extension mounting supports |
Power Ratings | Output power measured @ 1% THD at 120VAC 60Hz and 230VAC 50Hz |
