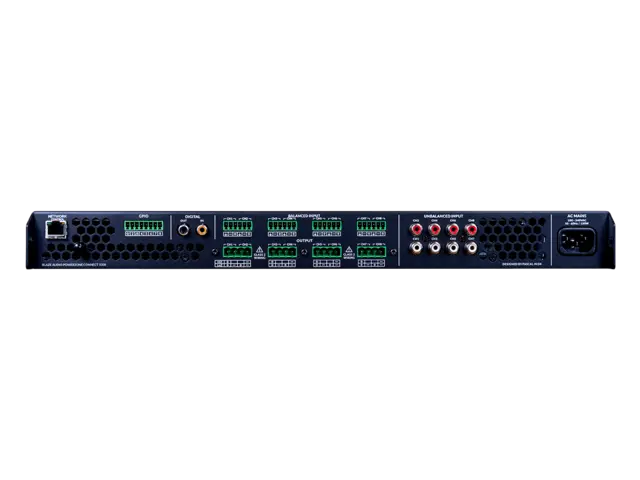

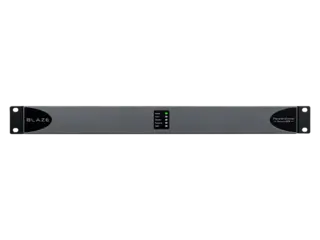

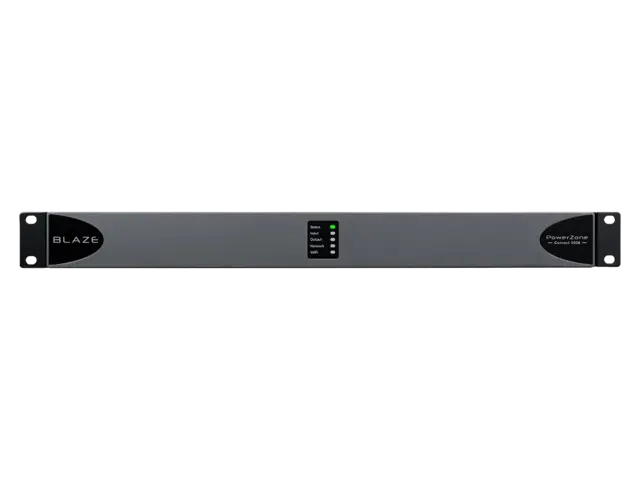

The PowerZone Connect 1008 is a compact DSP amplifier in a half rack, 1U format. It’s network-connected, giving wired or wireless access to the PowerZone Control web app’s system setup and audio configuration menu. From here you can manage inputs/outputs, control sound zones and access professional tuning settings – all helping achieve impressive sound in the shortest time possible.
It can drive both conventional low impedance (4O to 16O) loudspeakers and constant voltage (70V/100V) transformer coupled loudspeakers. With four analogue inputs, and one stereo digital input, it has flexible output options – 8 x 125W in Lo-Z mode and 4 x 250W in Hi-Z mode. Automatic power sharing technology enables 250W to be shared proportionately between each pair of Lo-Z outputs.
Full matrix DSP amplifier with configuration and control via the simple WebApp
Flexible power output with 8 x 125W / 4 x 250W and power sharing technology
Route any input to any output channel – create sound Zones in minutes
Ultra-compact form factor means it can be installed in spaces where others cannot
Powered by Pascal UMAC™ Class-D technology
Total System Power 1000 WOutput Power @ 4/8O 8 x 125 WOutput Power @ 70/100V* 4 x 250 WPowershare (up to)Across all channels** 2 x 25 WPower Consumption 1000WDimensions 44 x 220 x 319 mmWeight 3,8kg
Output Circuitry UMAC™ Class D - full bandwidth PWM modulator with ultra-low distortionOutput Voltage 70Vp / 140Vpp (unloaded) // Bridged 140Vp / 280 Vpp (unloaded)Signal To Noise-Ratio >106dB (A-weighted, 20Hz-20kHz, 8O load)THD+N (typical) < 0.05% (20Hz-20kHz, 8O load, 3dB below rated power)Frequency Response 20Hz-20kHz (+0/-0.25dB (8O load, 3dB below rated power)Protection Circuits Short circuit -, DC -, Undervoltage -, Temperature - and Overload protectionPower Supply UREC™ universal mains switch mode power supply with Power Factor Correction (PFC) and standby converterOperating temperature 0-40°COperating Voltage/Frequency Universal Mains, 100V-240V, 50Hz-60HzStandby Consumption < 0.5W
Accessories2x Rack ears1x ½ rack plate extension2x ½ rack mounting2x Rear supportsPower Ratings 1% THD @ 120Vac and 230Vac
