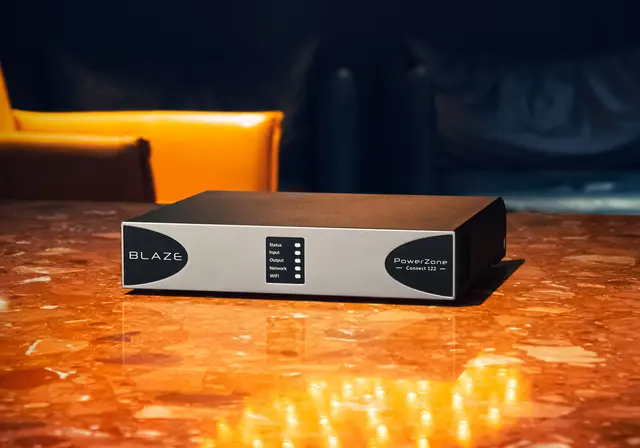

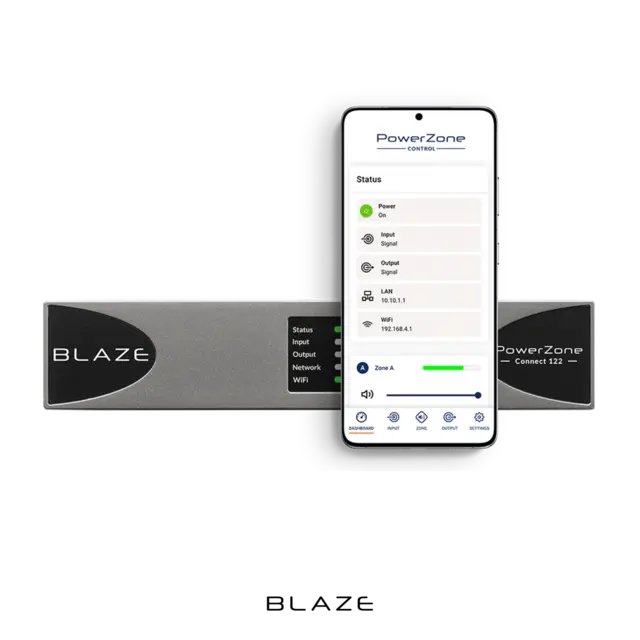

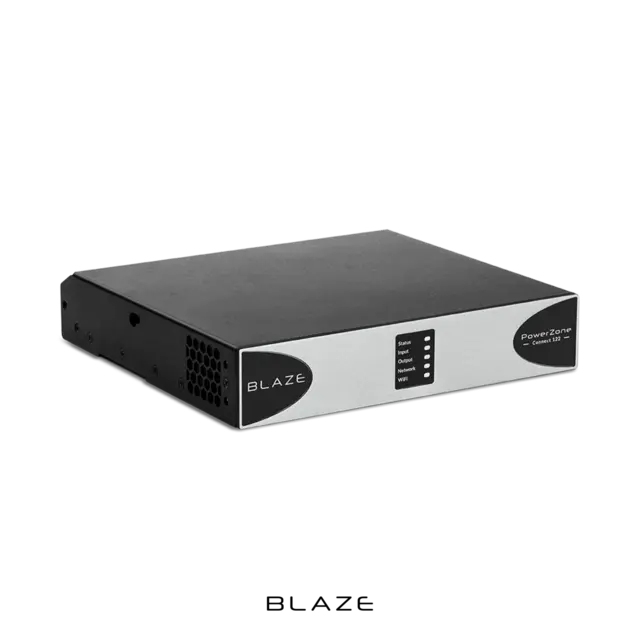

The PowerZone Connect 122 is a compact DSP amplifier in a half rack, 1U format. It’s network-connected, giving wired or wireless access to the PowerZone Control web app’s system setup and audio configuration menu. From here you can manage inputs/outputs, control sound zones and access professional tuning settings – helping to achieve impressive sound in the shortest time.

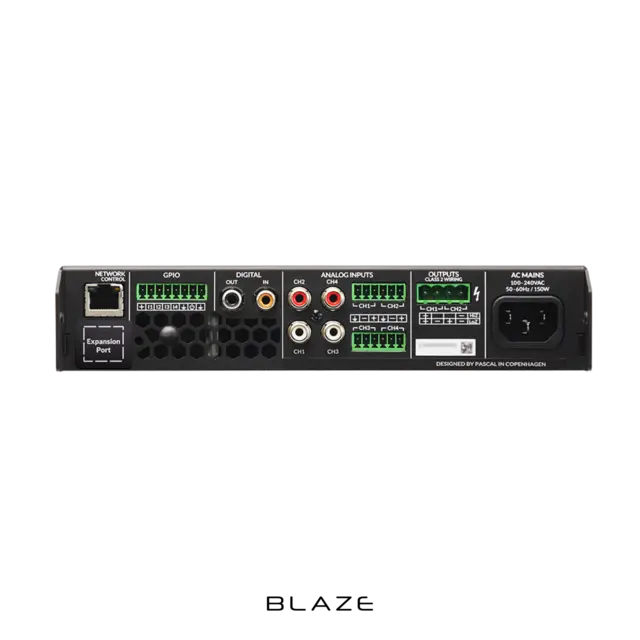

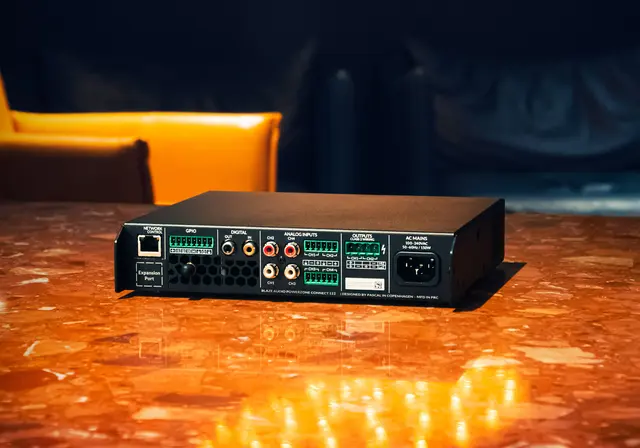

It can drive both conventional low impedance (4O to 16O) loudspeakers and constant voltage (70V/100V) transformer coupled loudspeakers. With four analogue inputs, and one stereo digital input, it has flexible output options – 2 x 60W in Lo-Z mode and 1 x 125W in Hi-Z mode. Automatic power sharing technology enables total available power to be shared proportionately between the outputs.
Full Matrix DSP amplifier with configuration and control via the simple WebApp
Flexible power output with 2 x 60W / 1x 125W and power sharing technology
Route any input to any output channel – create sound Zones in minutes
Ultra-compact form factor means it can be installed in spaces where others cannot
Powered by Pascal UMAC™ Class-D technology
Total System Power 125 WOutput Power @ 4/8O 2 x 60 WOutput Power @ 70/100V* 1 x 125 WPowershare (up to)Across all channels** 1 x 125 WPower Consumption 75WDimensions 44 x 220 x 213 mmWeight 2kg
Output Circuitry UMAC™ Class D - full bandwidth PWM modulator with ultra-low distortionOutput Voltage 70Vp / 140Vpp (unloaded) // Bridged 140Vp / 280 Vpp (unloaded)Signal To Noise-Ratio >106dB (A-weighted, 20Hz-20kHz, 8O load)THD+N (typical) < 0.05% (20Hz-20kHz, 8O load, 3dB below rated power)Frequency Response 20Hz-20kHz (+0/-0.25dB (8O load, 3dB below rated power)Protection Circuits Short circuit -, DC -, Undervoltage -, Temperature - and Overload protectionPower Supply UREC™ universal mains switch mode power supply with Power Factor Correction (PFC) and standby converterOperating temperature 0-40°COperating Voltage/Frequency Universal Mains, 100V-240V, 50Hz-60HzStandby Consumption < 0.5W
Accessories:2x Rack ears1x ½ rack plate extension2x ½ rack mounting2x Rear supportsPower Ratings 1% THD @ 120Vac and 230Vac
