Wall-S1 Wall Controller
Any PowerZone Connect amplifier can be controlled remotely with the
Wall-S1 wall-mounted PoE controller. It is simple to set-up, configure, and customize any installed system as well as any sound zone in a location.
With PIN code protection for system security and access, you can change source and manage volume in a matter of seconds.
Up to 8 controllers can be connected to any of the zones in the amplifier’s web app. Wall-S1 can be assigned to any zone – example two controllers to each of the four zones, or just one zone with eight sync’d devices. This is effortlessly managed in the PowerZone Control web app where you find many more helpful features.
PowerZone Connect can manage up to 8 x Wall-S1 controllers, configured exactly as you need, covering the majority of installs
Each networked, PoE controller is easily allocated to any sound zone in the amplifier’s web app and customised for that location

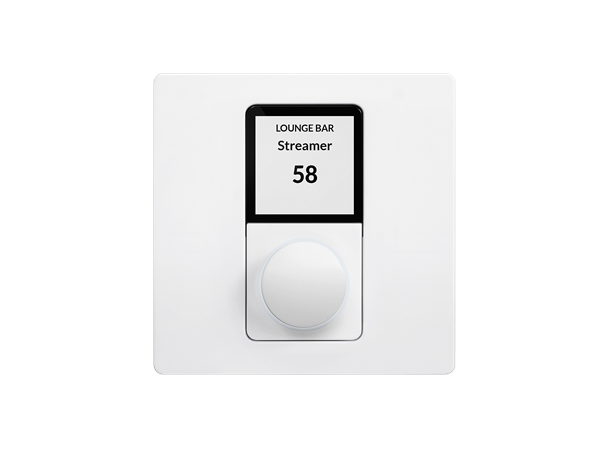

Change input source or adjust the volume in a sound zone in seconds, by following the clear on-screen menu
Programmable PIN code protection for both basic and advanced access, including system shut-down when leaving the location
Product Details
Any Blaze PowerZone Connect amplifier can be controlled remotely with the Wall-S1 networked / PoE controller.
It is simple to install, set up, configure, and customize for any system in any location. Zone control for source and volume is enabled in a matter of seconds.
Compatibility ANY PowerZone Connect Amplifier (with Firmware 1.3)

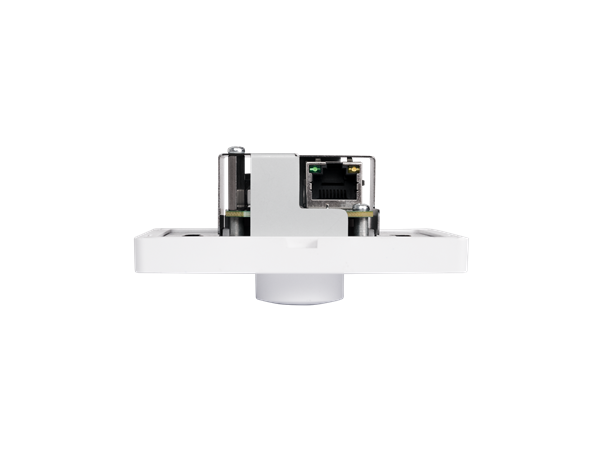

Connection & Protocol RJ45, Blaze Audio proprietary, CAT 5e or faster
Power Consumption PoE Class 1 / 3.84Wmax
Max Cable Length 100m (328ft)
Colours White (RAL9003) Black (RAL 9005)
