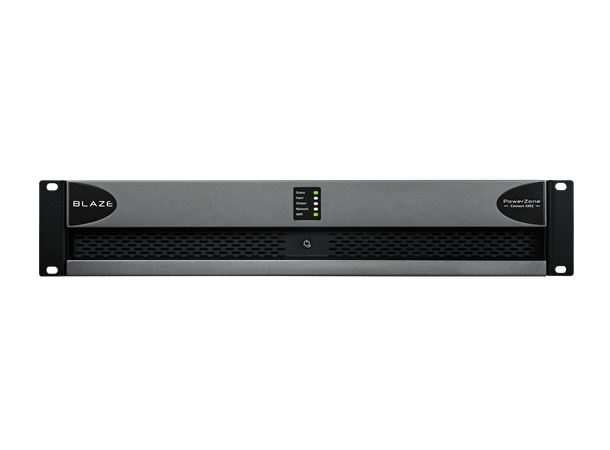

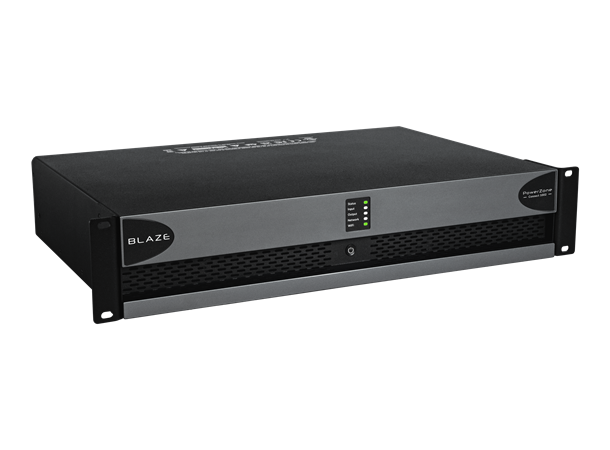

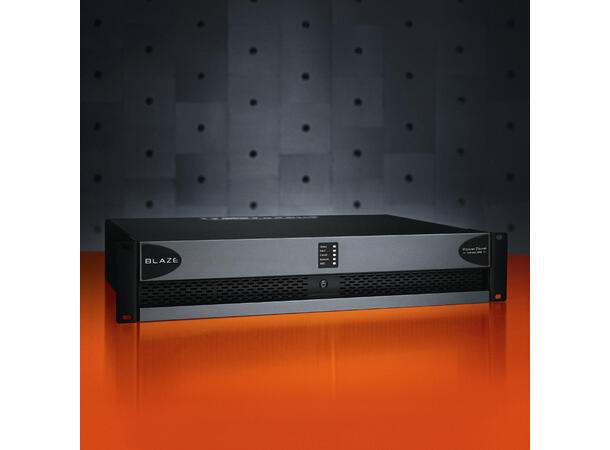

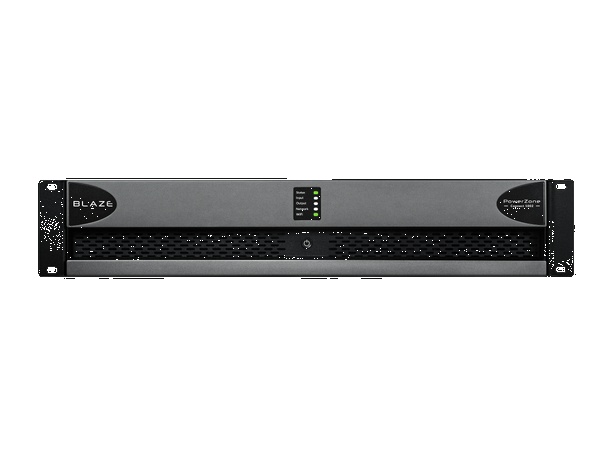

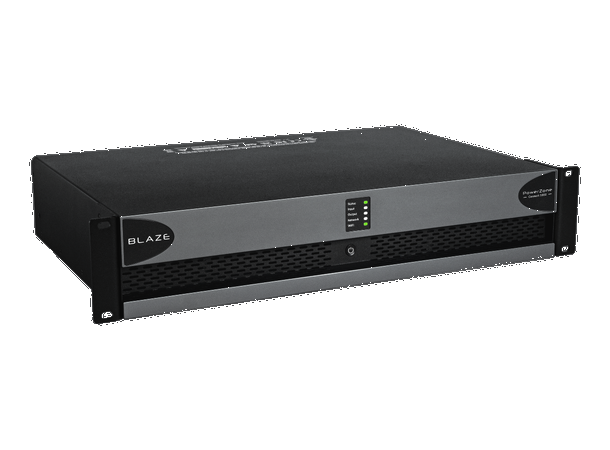

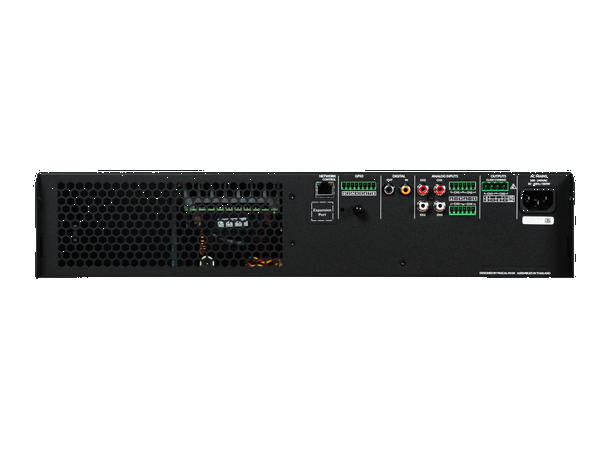

Blaze Audio PowerZone Connect 1002 EU
2x500W@2-4 Ohm | 2x250W@8 Ohm | 1x1000W@100V
The PowerZone Connect 1002 is a robust, reliable DSP amplifier in a full rack, 2U format, designed for seamless configuration and control. With both wired and wireless connectivity options, it provides easy access to the PowerZone Control web app, where you can effortlessly manage system setup and audio configurations.

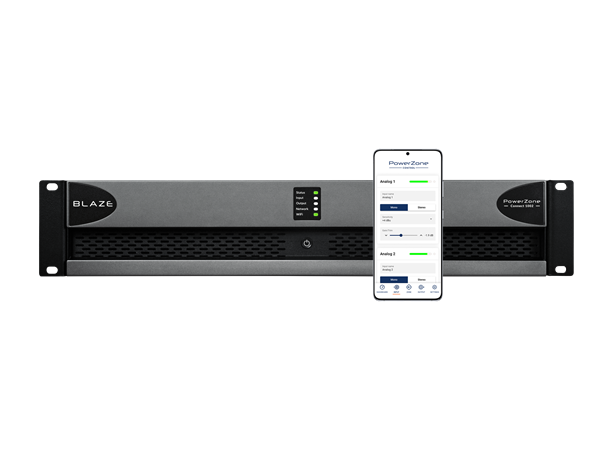

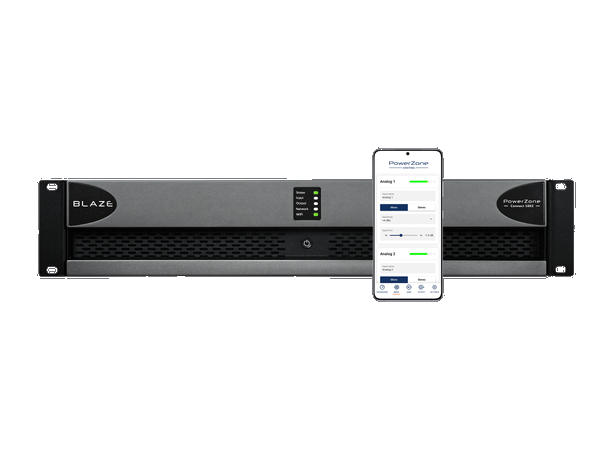

From the app, you can create sound zones, adjust inputs and outputs, update firmware, import speaker presets, and access a variety of professional EQ settings—all in just a few minutes. The intuitive interface even allows you to set everything up directly from your phone’s browser. Experience flexibility and power with the PowerZone Connect 1002.
- Full rack 2U form factor
- Full-matrix DSP configuration via PowerZone™ Control web app (built-in)
- Hybrid power distribution in both Lo-Z and Hi-Z
- Powered by Pascal UMAC™ Class-D technology
- UREC™ universal power supply with PFC

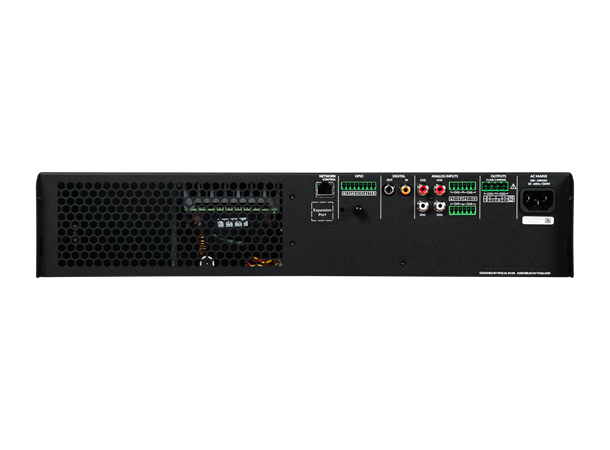

- S/PDIF input/output
- Configurable GPIO
- ErP and Energy Star compliant
- UL listed audio equipment
- 5 Year warranty
| Total System Power | 1000 W |
| Output Power @ 2 Ohm | 2 x 500 W (SE)* |
| Output Power @ 4 Ohm | 2 x 500 W (SE) |
| 1 x 1000 W (BTL)** |
| Output Power @ 8 Ohm | 2 x 250 W (SE) |
| 1 x 1000 W (BTL) |
| Output Power @ 70V | 1 x 1000 W (BTL) |
| Output Power @ 100V | 1 x 1000 W (BTL) |
| Power Consumption | 350 W |
| Dimensions | 88 x 440 x 332 mm |
| 3.5 x 17.3 x 13.1 in |
| Weight | 5.9 kg |
| Operating Temperature | 0-40° C |
| Features | 2 Channels |
