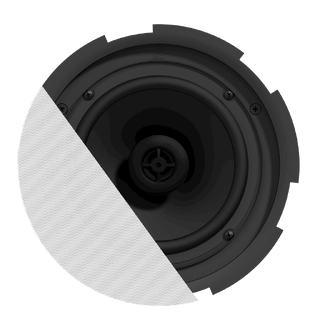

Designed to offer the best value for money ratio. The CIRA series are coaxial 2-way ceiling speakers featuring exceptional intelligibility and musical performance. The TwistFix™ borderless grill design offers easy but solid assembly and a completely seamless transition from grill to ceiling. This results in a perfect blend in to its environment. The QuickFit™ installation system combined with FastCon™ connector offers lifetime stability and great installers convenience.
The CIRA8 features a 8” driver using polypropylene cone material, combined with a 1” Mylar tweeter fitted with a phase plug for excellent off axis performance. The selected materials guarantee a low distortion performance with smooth and flat frequency response. A continuous power handling of 40 Watt (RMS) and maximum power handling of 80 watt is achieved, while fitted with a multi-tapping 100V line transformer with tappings for 24W, 12W, 6W and an 8 Ohm & 16 Ohm bypass connection.
VARIANTS
- CIRA824/W - White version, 8ohm & 24 Watt @ 100V
- CIRA824D/W - White version, 16 ohm
| SYSTEM SPECIFICATIONS |
|---|
| Max. Power | 80 W |
| RMS Power | 40 W |
| Sensitivity (1W/1m) | 89 dB |
| Speaker type | 2-way coaxial |
| Impedance | 8 ? (CIRA824) |
| 16 ? (CIRA840D) |
| Connectors | Multi-tap Fast-con™ connections |
| Sound Pressure (Max. W/1m) | @ 100 V | 105 dB |
| Frequency | Response (± 3 dB) | 40 Hz - 20 kHz |
| Range (-10 dB) | 33 Hz - 20 kHz |
| Dispersion | Conical | 140° |
| Drivers | HF | 1” |
| LF | 8” |
| Line Transformer Tappings | 1 | 24 W - 417 ? (CIRA824) |
| 2 | 12 W - 833 ? (CIRA824) |
| 3 | 6 W - 1667 ? (CIRA824) |
| PRODUCT FEATURES |
|---|
| Cut-out measurement | 243 mm (Ø) |
| Dimensions | 270 x 82 mm (Ø x D) |
| Weight | 1.65 kg (CIRA840D) |
| 1.75 kg (CIRA824) |
| Construction | ABS |
| Front finish | Twist-Fix™Borderless finely perforated steel grill |
| Built-in depth | 82 mm |
| Mounting | Quick-Fit™ mounting system |
| Colours | White (RAL9003) (CIRA824/W & CIRA840D/W) |
