Audac CIRA 824 Toveis takhøyttaler Hvit

24W 8ohm/100V

Varenr:123092
Alt varenr:CIRA824-W
1 370,-ink. mva
-+
Bestillingsvare
BeskrivelseSupport
Beskrivelse

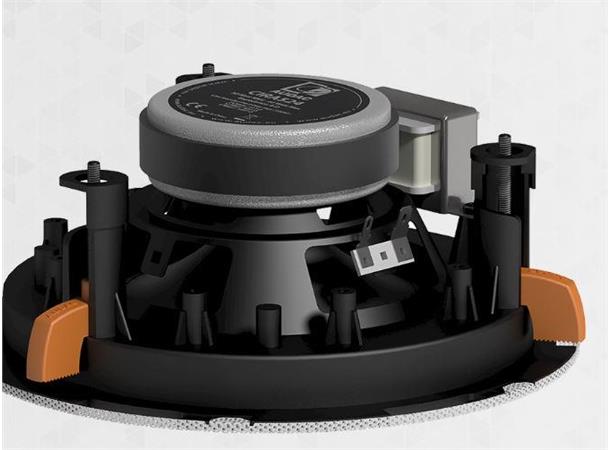

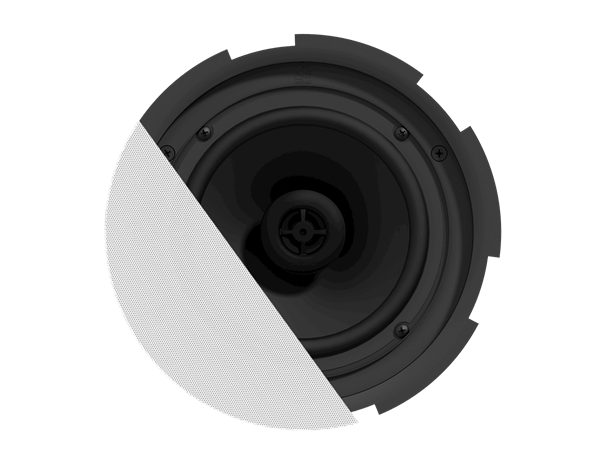

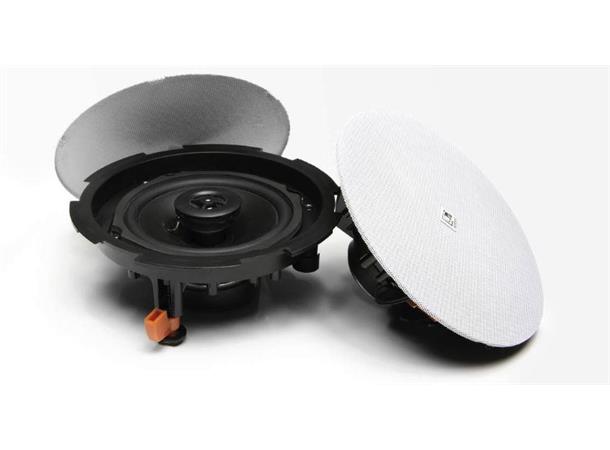

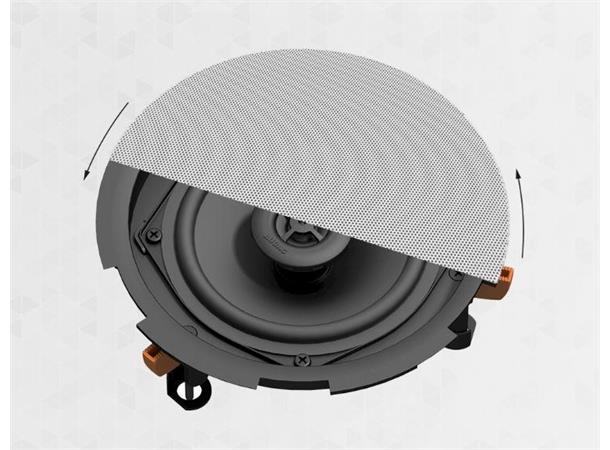

Designed to offer the best value for money ratio. The CIRA series are coaxial 2-way ceiling speakers featuring exceptional intelligibility and musical performance. The TwistFix™ borderless grill design offers easy but solid assembly and a completely seamless transition from grill to ceiling. This results in a perfect blend in to its environment. The QuickFit™ installation system combined with FastCon™ connector offers lifetime stability and great installers convenience.

The CIRA8 features a 8” driver using polypropylene cone material, combined with a 1” Mylar tweeter fitted with a phase plug for excellent off axis performance. The selected materials guarantee a low distortion performance with smooth and flat frequency response. A continuous power handling of 40 Watt (RMS) and maximum power handling of 80 watt is achieved, while fitted with a multi-tapping 100V line transformer with tappings for 24W, 12W, 6W and an 8 Ohm & 16 Ohm bypass connection.

VARIANTS

  • CIRA824/W - White version, 8ohm & 24 Watt @ 100V
  • CIRA824D/W - White version, 16 ohm


SYSTEM SPECIFICATIONS
Max. Power80 W
RMS Power40 W
Sensitivity (1W/1m)89 dB
Speaker type2-way coaxial
Impedance8 ? (CIRA824)
16 ? (CIRA840D)
ConnectorsMulti-tap Fast-con™ connections
Sound Pressure (Max. W/1m)@ 100 V105 dB
FrequencyResponse (± 3 dB)40 Hz - 20 kHz
Range (-10 dB)33 Hz - 20 kHz
DispersionConical140°
DriversHF1”
LF8”
Line Transformer Tappings124 W - 417 ? (CIRA824)
212 W - 833 ? (CIRA824)
36 W - 1667 ? (CIRA824)
PRODUCT FEATURES
Cut-out measurement243 mm (Ø)
Dimensions270 x 82 mm (Ø x D)
Weight1.65 kg (CIRA840D)
1.75 kg (CIRA824)
ConstructionABS
Front finishTwist-Fix™Borderless finely perforated steel grill
Built-in depth82 mm
MountingQuick-Fit™ mounting system
ColoursWhite (RAL9003) (CIRA824/W & CIRA840D/W)
