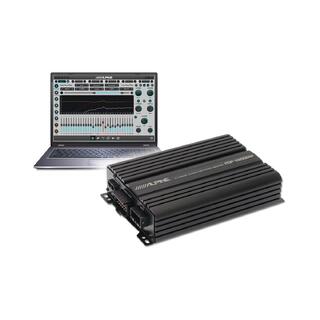

Alpine PDP-E800DSP forsterker

Digital DSP system forsterker med hele 8 utganger og 6 innganger. Spekket med egenskaper som full konfigurerbare utganger, 240-bands Parametrisk EQ, 8-kanals digital tids korreksjon og 8-kanals digitalt delefilter.

PDP-E800DSP er en perfekt løsning, spesielet for oppgradering av originale systemer hvor radio ikke kan byttes ut for å få bedre lyd. Denne DSP forsterkeren kobles enkelt til OEM systemet og lar deg utvide og forbedre lyden.

FEATURES

GENERAL

• 6 high-level inputs for OEM system integration
• 6 analog Pre-Amp inputs (RCA) for aftermarket head unit connectivity
• 1 digital TOSLINK/SPDIF input
• Up to 8 speaker outputs with high power rating
• 110dB signal-to-noise ratio (digital input)
• Channel separation > 75dB

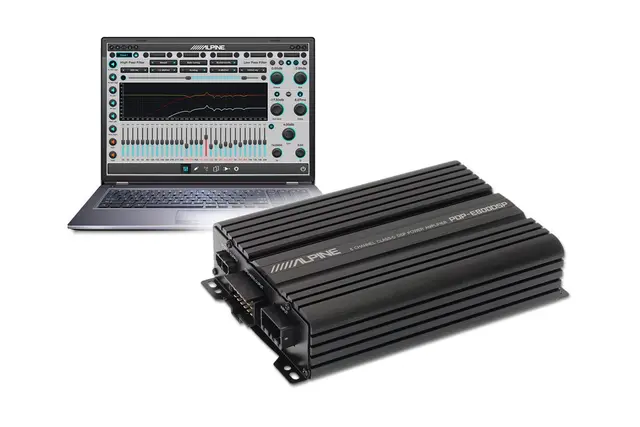

• USB Device input for DSP setup by PC
• Wireless connection with separate module (amp setup) for PC only, or wireless audio streaming (smart phone or PC))
• Class-D amplifier with fully digital audio path
• ADCs by Burr Brown

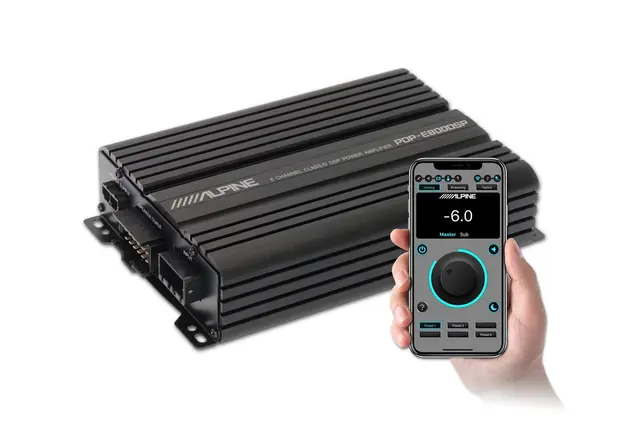

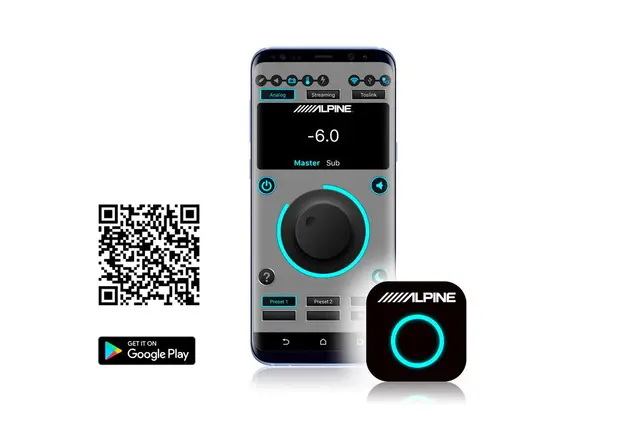

• Remote app for iOS and Android with basic control functions (Master level, Sub level, Preset recall, source selection)
• Pre-amp output (copy from channel 8, for external sub woofer amp)


AMP

• BurrBrown A/D conversion
• Full digital audio path
• High output power capability
• Total power 700 Watt RMS at 4 O
• 100 Watt per channel at 4 O
• 120 Watt per channel at 2 O
• 200 Watt at 2 O (2 channels in parallel mode)
• Advanced diagnostics for each output channels (shortcut, overheat, clipping)
• Start-Stop Engine compatible
• Load Capability: 4 – 2 O
• Parallelized output supported

DSP

• Latest Analog Device chip (ADAU1452)
• Up to 8 speaker outputs with independent adjustable output level
• Independent or linkable setups for all output channels
• Delay on each channel up to 14,57ms, 0.01msec steps

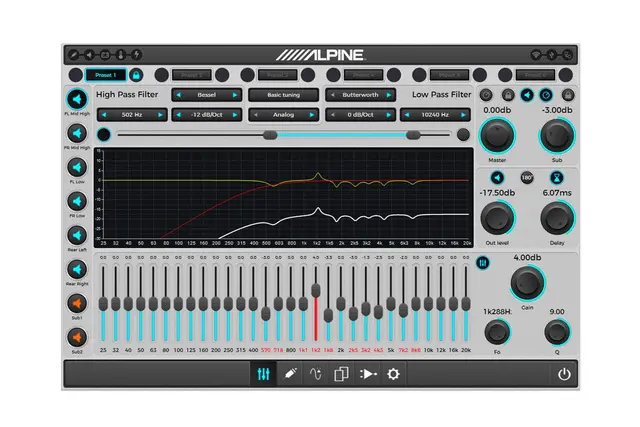

• 30-band Graphic Equalizer per channel with configurable frequency, Q (from 1 up to 15) and Gain (-10dB /+10 dB)
• Digital X-Over for each channel (HP, LP, BP) 6/12/18/24dB/30dB, type of filter (Butterworth, Bessel, Chebyshev) selectable
• Phase Inversion (0,180)
• Master Volume (0 – 42dB)
• Sub control (0 - 15 dB)
• Possibility to save/load up to 6 presets on DSP
• Settings can be secured by certificates
• Free adjustable analog routing (example: channel mixing for center channel or 3-way input signal)
• EQ ON/OFF possible (for each channel)
• Delay grouping for easier TCR adjustment (up to 4 groups possible)
• TCR ON/OFF for each channel possible
• TCR help calculation for beginners
• Overview page for all settings
• Live monitor (for battery voltage and amp temperature)
• Turn ON by signal or wire
• Alpine RUX-KNOB2 ready (master volume or sub level)
• Additional gain on analog input (+6; +9db ). For sources with lower pre-amp level than 2 Volts
