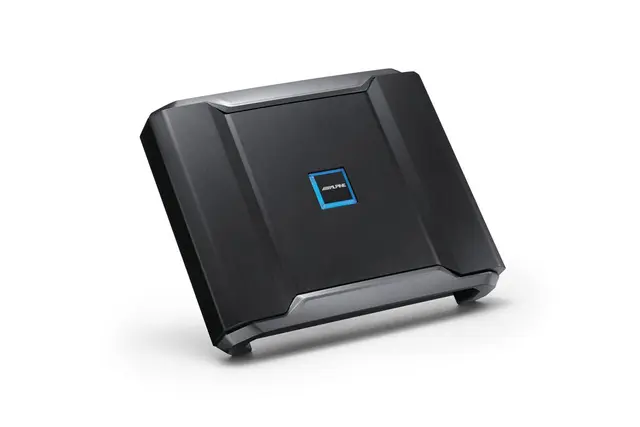

Alpine R-A60F forsterker 4x150W

Kraftig stilren 4 kanals forsterker

FEATURES Install

Terminal Layout: One side Small footprint for easy installation Screw terminals (for speaker and power cables) General

Amplifier Type: Class-D (Digital) Channel Design: 4/3/2 Channel Thermal Management Control Top Mounted LED Power/Status Indicator Speaker Level Input with remote turn on Crossover: Adjustable Low-pass (LPF), High-Pass Filter (HPF) and Band-Pass Filter Gain Control: Adjustable Bass EQ emote Bass Control (RUX-KNOB2) Ready (for channel 3+4 in bridged mode only)

SPECIFICATIONS

Max Power Output Ratings

Total Max Power: 1200W RMS Power Ratings

Per Channel into 2 Ohms, 14.4V (=1%THD+N): 4 x 150W Per Channel into 4 Ohms, 14.4V (=1%THD+N): 4 x 100W Bridged, 4 Ohms, 14.4V: 2 x 300W Sound Tuning

Crossover: Variable HPF/LPF: 50-400Hz (-12dB/oct ) Crossover: Variable HPF-H: 400Hz-6kHz General

Power Requirements: 14.4 V.DC (9 - 16 V allowable) Input Sensitivity (RCA Input): Hi: 0.5V - 10V / Low: 0.2V - 4.0V High Level Input with automatic power on Cable size: Power Cable AWG 4, SPK Cable AWG 8 Frequency Response (+0/ -3dB: 1W into 4 Ohms): 10Hz - 45kHz THD+N (@ 10W into 4 Ohms): <0.03% Damping Factor: >500 Weight: 3.2kg Dimensions

Heat Sink (WxHxD) mm: 273 x 50.8 x 200 With attached brackets: 273 x 50.8 x 223
