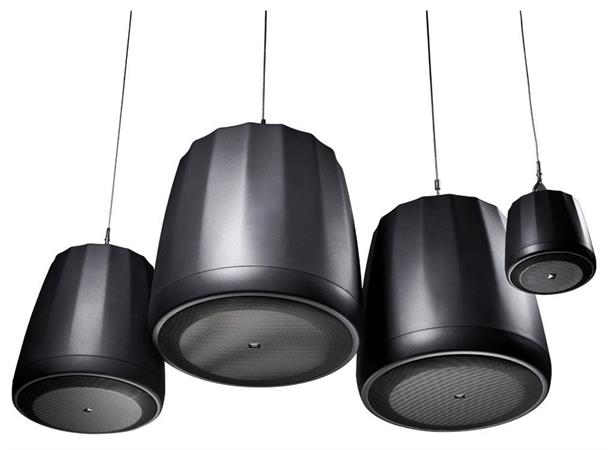

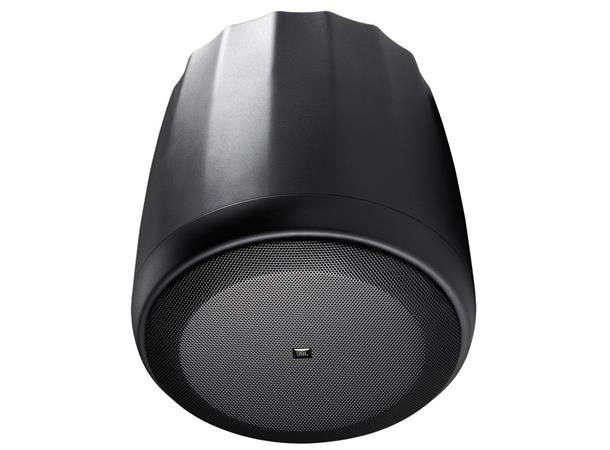

JBL PRO Control 60PST Pendel Subwoofer

8" driver 8ohm/70/100V, stk. sort

Varenr:122303
Alt varenr:C60PST
7 198,-ink. mva
-+
1 på lager
BeskrivelseSupport
Beskrivelse
Frequency Range (-10 dB)42 Hz – 350 Hz
Frequency Response (± 3 dB)55 Hz – 125 Hz
Power Capacity300 Watts Continuous Program Power, 100 hrs
150 Watts Continuous Pink Noise, 100 hrs
Nominal Sensitivity (2.83V/1m)88 dB
Rated Maximum SPL107 dB @ 1 m (3.3 ft) average, 113 dB peak
Rated Impedance8 ohms
Transformer Taps110W, 55W, 30W (& , 15W@70V). Set via rotary tap-selector switch (70V/100V taps along with direct 8
Transformer Insertion Loss0.98 dB @ 15W, 0.99 dB @ 30W, 0.94 dB @ 55W, 1.10 @ 110W
Standalone HookupConnect to Input connector , built-in low-pass filter permanently engaged. Loop Out in parallel with Input connector (pre low-pass filter) for sending to additional speakers.
Subwoofer-Satellite HookupFor either two or four satellite speakers (not for one or three satellite speakers). With two satellite speakers, must connect to Sat 1 and Sat 2 terminals only (NC to Sat 3 and Sat 4 terminals). Satellite outputs highpassed. Suggested satellite speakers include Control 62P (pendant), Control 52 (surface-mount on-wall) and Control 42C (in-ceiling). Satellite speakers to be low-Z type (8 to 16
Transducer200mm (8 in) polypropylene-coated paper cone with butyl rubber surround, 50 mm (2 in) high-temperature copper voice coil, vented fiberglass resin voice coil former.
Enclosure MaterialHigh impact polystyrene
GrilleZinc-plated steel grille with powder-coat finish, foam backing (grille and grille backing are removable for painting)
EnvironmentalExceeds Mil Spec 810 for humidity, salt spray, temperature & , UV. IP44 capability per IEC 529 – splash-proof rating
TerminationSix removable locking 2-pin connectors with screw-down terminals. Input, Loop Out, Sat 1, Sat 2, Sat 3, Sat 4. Max wire 12 AWG (2.5 mm2). Rubber terminal covers included.
SuspensionTwo identical suspension cable systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long, 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cable has SWL rating of 45 kg (99 lb).
Safety AgencySpeaker listed per UL1480 (UEAY), transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®- brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & , Class 3426-81.
Dimensions333 mm (13.1 in) diameter, 344 mm (13.6 in) height to top of cabinet.
369 mm (14.5 in) to top of suspension bracket.
Net Weight7.6 kg (16.7 lb)
Shipping Weight17.6 kg (38.7 lbs) per pair-packed carton
Included AccessoriesTwo suspension cable systems (see “suspension”, above), six removable locking 2-pin euro-block connectors, six rubber cover boots for euroblock connectors.
Optional AccessoriesMTC-PC60 full top panel / terminal cover. Wire access holes in plastic cover to be drilled by installer to suit the number and dimensions of wire.
ColorsAvailable in black or white (-WH). Paintable.
